Exhausts

During the Covid outbreak I will not be posting packages every day, so some deliveries will be delayed.

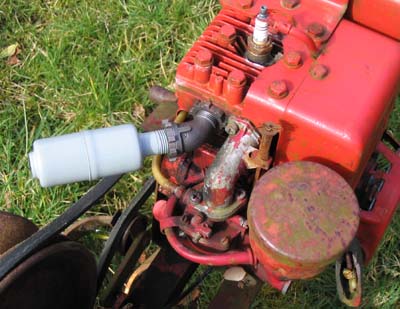

Briggs & Stratton make a variety of exhausts for the side valve models used on Merry Tillers over the years. Early 3hp Majors had the set up shown below but by 1964 a deflector was fitted on the end of the cylindrical silencer instead of the 45 degree pipe elbow. Unfortunately this deflector is no longer available, so you will have to go back to the earlier arrangement by using an elbow and extra exhaust locking ring when you want to replace your exhaust (see details below), or use the lo-tone silencer which was fitted to later models with a pulsa-jet carburettor. These, and deflectors to suit, are available  from your local Briggs & Stratton agent. Clinton engines used the same cylindrical silencers as the 3hp Briggs & Stratton.

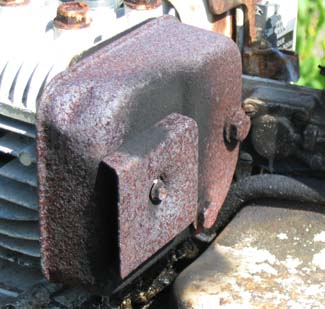

Most 5hp models use the square box silencer in the second picture, with deflector. However the mounting bolts have a habit of shearing off when you try to remove them, it is then easier to fit a bigger version of the early 3hp set up than try to get the broken bolts out. We stock both types, see below for details. 4hp models are tricky as early ones used the 5hp cylinder block, so use the 5hp silencers, late 4hp engines were based on the 3.5hp block, which can use the same screw in exhausts as the 3hp engines.

To order using a Credit card, Debit card or  pay-pal use the shopping basket buttons (to the right of each item).

Part number

Description

Price each

89966 Cylindrical silencer for 3hp engines

10

91838s Cylindrical silencer, complete with 45 degree pipe elbow and extra locking ring for 3hp engines

18

691720 Exhaust locking ring for 3hp engines

4

297274 Square Silencer with deflector for 5hp engines

14

294599 Cylindrical silencer for 5hp engines

10

91219k Cylindrical silencer kit with 45 degree pipe elbow and two locking rings for 5hp engines

22
